TCLAP::DocBookOutput Class Reference

A class that generates DocBook output for usage() method for the given CmdLine and its Args. More...

#include <DocBookOutput.h>

Inheritance diagram for TCLAP::DocBookOutput:

Collaboration diagram for TCLAP::DocBookOutput:

Public Member Functions
virtual void	usage (CmdLineInterface &c)
	Prints the usage to stdout.
virtual void	version (CmdLineInterface &c)
	Prints the version to stdout.
virtual void	failure (CmdLineInterface &c, ArgException &e)
	Prints (to stderr) an error message, short usage Can be overridden to produce alternative behavior.
	DocBookOutput ()
Public Member Functions inherited from TCLAP::CmdLineOutput
virtual	~CmdLineOutput ()
	Virtual destructor.

Protected Member Functions
void	substituteSpecialChars (std::string &s, char r, std::string &x)
	Substitutes the char r for string x in string s.
void	removeChar (std::string &s, char r)
void	basename (std::string &s)
void	printShortArg (Arg *it)
void	printLongArg (Arg *it)

Static Protected Member Functions
static std::string	escapeXml (const std::string &text)
static std::string	valueLabel (const Arg &arg)

Protected Attributes
char	theDelimiter

Detailed Description

A class that generates DocBook output for usage() method for the given CmdLine and its Args.

Definition at line 44 of file DocBookOutput.h.

Constructor & Destructor Documentation

DocBookOutput()

TCLAP::DocBookOutput::DocBookOutput ( )

inline

Definition at line 72 of file DocBookOutput.h.

Member Function Documentation

basename()

void TCLAP::DocBookOutput::basename ( std::string &  s )

inlineprotected

Definition at line 254 of file DocBookOutput.h.

Referenced by usage().

escapeXml()

static std::string TCLAP::DocBookOutput::escapeXml ( const std::string &  text )

inlinestaticprotected

Definition at line 75 of file DocBookOutput.h.

Referenced by printLongArg(), printShortArg(), and usage().

failure()

void TCLAP::DocBookOutput::failure ( CmdLineInterface &  c, ArgException &  e  )

inlinevirtual

Prints (to stderr) an error message, short usage Can be overridden to produce alternative behavior.

Parameters

c	- The CmdLine object the output is generated for.
e	- The ArgException that caused the failure.

Implements TCLAP::CmdLineOutput.

Definition at line 225 of file DocBookOutput.h.

References TCLAP::ArgException::what().

Here is the call graph for this function:

printLongArg()

void TCLAP::DocBookOutput::printLongArg ( Arg *  it )

inlineprotected

Definition at line 297 of file DocBookOutput.h.

References escapeXml(), TCLAP::Arg::flagStartChar(), TCLAP::Arg::getDescription(), TCLAP::Arg::getFlag(), TCLAP::Arg::getName(), TCLAP::Arg::hasLabel(), TCLAP::Arg::isValueRequired(), TCLAP::Arg::nameStartString(), theDelimiter, and valueLabel().

Referenced by usage().

Here is the call graph for this function:

printShortArg()

void TCLAP::DocBookOutput::printShortArg ( Arg *  it )

inlineprotected

Definition at line 263 of file DocBookOutput.h.

References TCLAP::Arg::acceptsMultipleValues(), escapeXml(), TCLAP::Arg::flagStartChar(), TCLAP::Arg::getFlag(), TCLAP::Arg::getName(), TCLAP::Arg::hasLabel(), TCLAP::Arg::isRequired(), TCLAP::Arg::isValueRequired(), TCLAP::Arg::nameStartString(), theDelimiter, and valueLabel().

Referenced by usage().

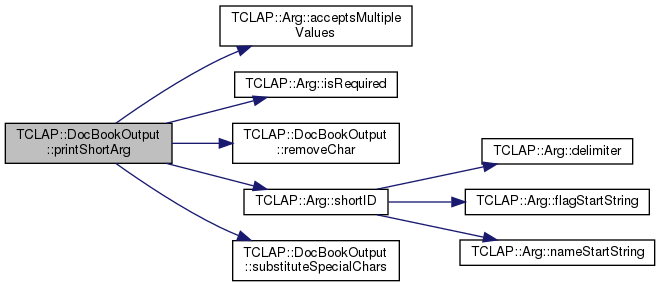

Here is the call graph for this function:

removeChar()

void TCLAP::DocBookOutput::removeChar ( std::string &  s, char  r  )

inlineprotected

Definition at line 245 of file DocBookOutput.h.

substituteSpecialChars()

void TCLAP::DocBookOutput::substituteSpecialChars ( std::string &  s, char  r, std::string &  x  )

inlineprotected

Substitutes the char r for string x in string s.

Parameters

s	- The string to operate on.
r	- The char to replace.
x	- What to replace r with.

Definition at line 233 of file DocBookOutput.h.

usage()

void TCLAP::DocBookOutput::usage ( CmdLineInterface &  c )

inlinevirtual

Prints the usage to stdout.

Can be overridden to produce alternative behavior.

Parameters

c	- The CmdLine object the output is generated for.

Implements TCLAP::CmdLineOutput.

Definition at line 129 of file DocBookOutput.h.

References basename(), TCLAP::XorHandler::contains(), escapeXml(), TCLAP::CmdLineInterface::getArgList(), TCLAP::CmdLineInterface::getDelimiter(), TCLAP::CmdLineInterface::getMessage(), TCLAP::CmdLineInterface::getProgramName(), TCLAP::CmdLineInterface::getVersion(), TCLAP::CmdLineInterface::getXorHandler(), TCLAP::XorHandler::getXorList(), TCLAP::Arg::hasLabel(), printLongArg(), printShortArg(), and theDelimiter.

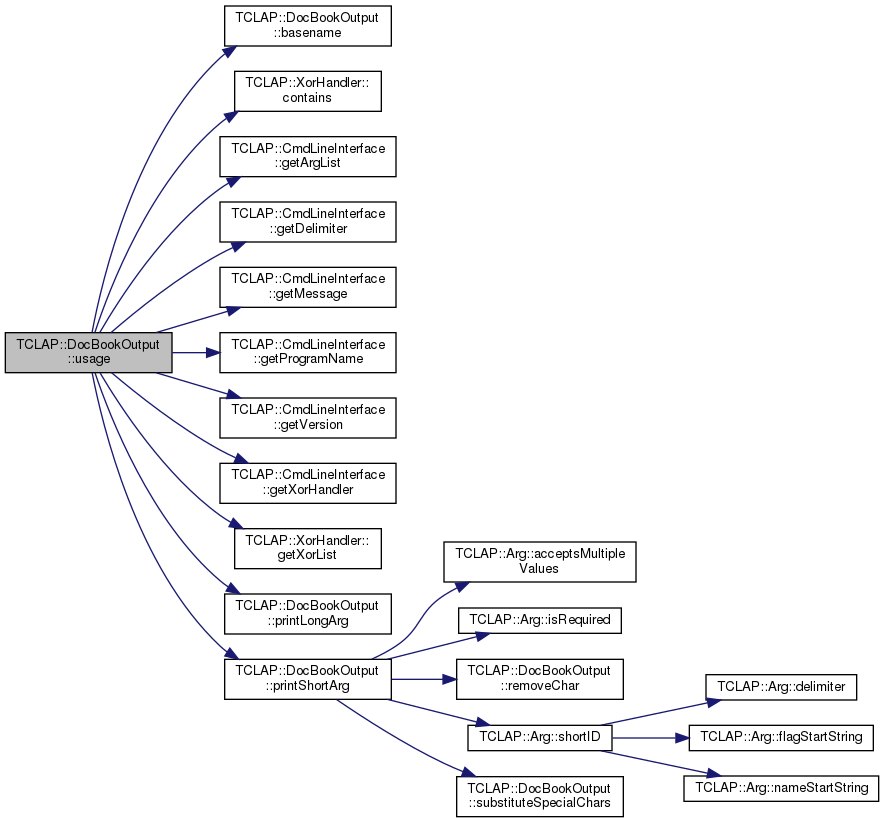

Here is the call graph for this function:

valueLabel()

static std::string TCLAP::DocBookOutput::valueLabel ( const Arg &  arg )

inlinestaticprotected

Definition at line 90 of file DocBookOutput.h.

References TCLAP::Arg::flagStartString(), TCLAP::Arg::getFlag(), TCLAP::Arg::getName(), TCLAP::Arg::nameStartString(), and TCLAP::Arg::shortID().

Referenced by printLongArg(), and printShortArg().

Here is the call graph for this function:

version()

void TCLAP::DocBookOutput::version ( CmdLineInterface &  c )

inlinevirtual

Prints the version to stdout.

Can be overridden to produce alternative behavior.

Parameters

c	- The CmdLine object the output is generated for.

Implements TCLAP::CmdLineOutput.

Definition at line 124 of file DocBookOutput.h.

References TCLAP::CmdLineInterface::getVersion().

Here is the call graph for this function:

Member Data Documentation

theDelimiter

char TCLAP::DocBookOutput::theDelimiter

protected

Definition at line 120 of file DocBookOutput.h.

Referenced by printLongArg(), printShortArg(), and usage().

---

The documentation for this class was generated from the following file:

• DocBookOutput.h
