TCLAP::StdOutput Class Reference

A class that isolates any output from the CmdLine object so that it may be easily modified. More...

#include <StdOutput.h>

Inheritance diagram for TCLAP::StdOutput:

Collaboration diagram for TCLAP::StdOutput:

Public Member Functions
virtual void	usage (CmdLineInterface &c)
	Prints the usage to stdout. More...
virtual void	version (CmdLineInterface &c)
	Prints the version to stdout. More...
virtual void	failure (CmdLineInterface &c, ArgException &e)
	Prints (to stderr) an error message, short usage Can be overridden to produce alternative behavior. More...
Public Member Functions inherited from TCLAP::CmdLineOutput
virtual	~CmdLineOutput ()
	Virtual destructor. More...

Protected Member Functions
void	_shortUsage (CmdLineInterface &c, std::ostream &os) const
	Writes a brief usage message with short args. More...
void	_longUsage (CmdLineInterface &c, std::ostream &os) const
	Writes a longer usage message with long and short args, provides descriptions and prints message. More...
void	spacePrint (std::ostream &os, const std::string &s, int maxWidth, int indentSpaces, int secondLineOffset) const
	This function inserts line breaks and indents long strings according the params input. More...

Detailed Description

A class that isolates any output from the CmdLine object so that it may be easily modified.

Definition at line 44 of file StdOutput.h.

Member Function Documentation

_longUsage()

void TCLAP::StdOutput::_longUsage ( CmdLineInterface &  c, std::ostream &  os  ) const

inlineprotected

Writes a longer usage message with long and short args, provides descriptions and prints message.

Parameters

c	- The CmdLine object the output is generated for.
os	- The stream to write the message to.

Definition at line 193 of file StdOutput.h.

References TCLAP::XorHandler::contains(), TCLAP::CmdLineInterface::getArgList(), TCLAP::CmdLineInterface::getMessage(), TCLAP::CmdLineInterface::getXorHandler(), TCLAP::XorHandler::getXorList(), and spacePrint().

Referenced by usage().

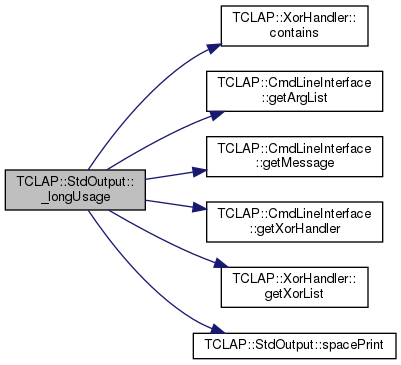

Here is the call graph for this function:

_shortUsage()

void TCLAP::StdOutput::_shortUsage ( CmdLineInterface &  c, std::ostream &  os  ) const

inlineprotected

Writes a brief usage message with short args.

Parameters

c	- The CmdLine object the output is generated for.
os	- The stream to write the message to.

Definition at line 158 of file StdOutput.h.

References TCLAP::XorHandler::contains(), TCLAP::CmdLineInterface::getArgList(), TCLAP::CmdLineInterface::getProgramName(), TCLAP::CmdLineInterface::getXorHandler(), TCLAP::XorHandler::getXorList(), and spacePrint().

Referenced by failure(), and usage().

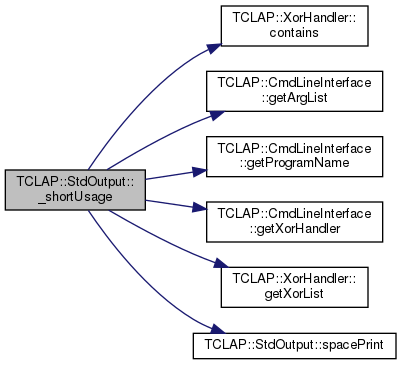

Here is the call graph for this function:

failure()

void TCLAP::StdOutput::failure ( CmdLineInterface &  c, ArgException &  e  )

inlinevirtual

Prints (to stderr) an error message, short usage Can be overridden to produce alternative behavior.

Parameters

c	- The CmdLine object the output is generated for.
e	- The ArgException that caused the failure.

Implements TCLAP::CmdLineOutput.

Definition at line 132 of file StdOutput.h.

References _shortUsage(), TCLAP::ArgException::argId(), TCLAP::ArgException::error(), TCLAP::CmdLineInterface::getProgramName(), TCLAP::CmdLineInterface::hasHelpAndVersion(), TCLAP::Arg::nameStartString(), and usage().

Here is the call graph for this function:

spacePrint()

void TCLAP::StdOutput::spacePrint ( std::ostream &  os, const std::string &  s, int  maxWidth, int  indentSpaces, int  secondLineOffset  ) const

inlineprotected

This function inserts line breaks and indents long strings according the params input.

It will only break lines at spaces, commas and pipes.

Parameters

os	- The stream to be printed to.
s	- The string to be printed.
maxWidth	- The maxWidth allowed for the output line.
indentSpaces	- The number of spaces to indent the first line.
secondLineOffset	- The number of spaces to indent the second and all subsequent lines in addition to indentSpaces.

Definition at line 231 of file StdOutput.h.

Referenced by _longUsage(), and _shortUsage().

usage()

void TCLAP::StdOutput::usage ( CmdLineInterface &  c )

inlinevirtual

Prints the usage to stdout.

Can be overridden to produce alternative behavior.

Parameters

c	- The CmdLine object the output is generated for.

Implements TCLAP::CmdLineOutput.

Definition at line 118 of file StdOutput.h.

References _longUsage(), and _shortUsage().

Referenced by failure().

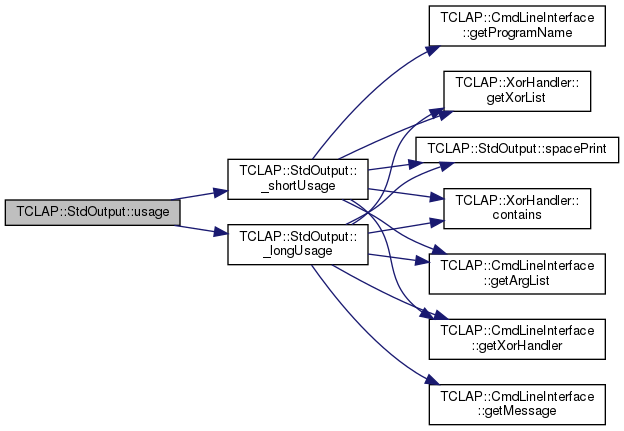

Here is the call graph for this function:

version()

void TCLAP::StdOutput::version ( CmdLineInterface &  c )

inlinevirtual

Prints the version to stdout.

Can be overridden to produce alternative behavior.

Parameters

c	- The CmdLine object the output is generated for.

Implements TCLAP::CmdLineOutput.

Definition at line 109 of file StdOutput.h.

References TCLAP::CmdLineInterface::getProgramName(), and TCLAP::CmdLineInterface::getVersion().

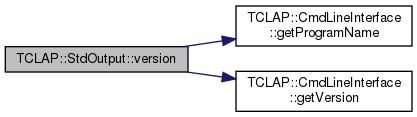

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• StdOutput.h
