TCLAP::UnlabeledValueArg< T > Class Template Reference

The basic unlabeled argument that parses a value. More...

#include <UnlabeledValueArg.h>

Inheritance diagram for TCLAP::UnlabeledValueArg< T >:
Inheritance graph
[legend]
Collaboration diagram for TCLAP::UnlabeledValueArg< T >:
Collaboration graph
[legend]

Public Member Functions

 UnlabeledValueArg (const std::string &name, const std::string &desc, bool req, T value, const std::string &typeDesc, bool ignoreable=false, Visitor *v=NULL)
 UnlabeledValueArg constructor. More...

 UnlabeledValueArg (const std::string &name, const std::string &desc, bool req, T value, const std::string &typeDesc, CmdLineInterface &parser, bool ignoreable=false, Visitor *v=NULL)
 UnlabeledValueArg constructor. More...

 UnlabeledValueArg (const std::string &name, const std::string &desc, bool req, T value, Constraint< T > *constraint, bool ignoreable=false, Visitor *v=NULL)
 UnlabeledValueArg constructor. More...

 UnlabeledValueArg (const std::string &name, const std::string &desc, bool req, T value, Constraint< T > *constraint, CmdLineInterface &parser, bool ignoreable=false, Visitor *v=NULL)
 UnlabeledValueArg constructor. More...

virtual bool processArg (int *i, std::vector< std::string > &args)
 Handles the processing of the argument. More...

virtual std::string shortID (const std::string &val="val") const
 Overrides shortID for specific behavior. More...

virtual std::string longID (const std::string &val="val") const
 Overrides longID for specific behavior. More...

virtual bool operator== (const Arg &a) const
 Overrides operator== for specific behavior. More...

virtual void addToList (std::list< Arg *> &argList) const
 Instead of pushing to the front of list, push to the back. More...

- Public Member Functions inherited from TCLAP::ValueArg< T >
 ValueArg (const std::string &flag, const std::string &name, const std::string &desc, bool req, T value, const std::string &typeDesc, Visitor *v=NULL)
 Labeled ValueArg constructor. More...

 ValueArg (const std::string &flag, const std::string &name, const std::string &desc, bool req, T value, const std::string &typeDesc, CmdLineInterface &parser, Visitor *v=NULL)
 Labeled ValueArg constructor. More...

 ValueArg (const std::string &flag, const std::string &name, const std::string &desc, bool req, T value, Constraint< T > *constraint, CmdLineInterface &parser, Visitor *v=NULL)
 Labeled ValueArg constructor. More...

 ValueArg (const std::string &flag, const std::string &name, const std::string &desc, bool req, T value, Constraint< T > *constraint, Visitor *v=NULL)
 Labeled ValueArg constructor. More...

const T & getValue () const
 Returns the value of the argument. More...

T & getValue ()

 operator const T & () const
 A ValueArg can be used as as its value type (T) This is the same as calling getValue() More...

virtual void reset ()
 Clears the Arg object and allows it to be reused by new command lines. More...

- Public Member Functions inherited from TCLAP::Arg
virtual ~Arg ()
 Destructor. More...

const std::string & getFlag () const
 Returns the argument flag. More...

const std::string & getName () const
 Returns the argument name. More...

std::string getDescription () const
 Returns the argument description. More...

virtual bool isRequired () const
 Indicates whether the argument is required. More...

void forceRequired ()
 Sets _required to true. More...

void xorSet ()
 Sets the _alreadySet value to true. More...

bool isValueRequired () const
 Indicates whether a value must be specified for argument. More...

bool isSet () const
 Indicates whether the argument has already been set. More...

bool isIgnoreable () const
 Indicates whether the argument can be ignored, if desired. More...

virtual bool argMatches (const std::string &s) const
 A method that tests whether a string matches this argument. More...

virtual std::string toString () const
 Returns a simple string representation of the argument. More...

virtual void trimFlag (std::string &flag, std::string &value) const
 Trims a value off of the flag. More...

bool _hasBlanks (const std::string &s) const
 Checks whether a given string has blank chars, indicating that it is a combined SwitchArg. More...

void setRequireLabel (const std::string &s)
 Sets the requireLabel. More...

virtual bool allowMore ()
 Used for MultiArgs and XorHandler to determine whether args can still be set. More...

virtual bool acceptsMultipleValues ()
 Use by output classes to determine whether an Arg accepts multiple values. More...


Additional Inherited Members

- Static Public Member Functions inherited from TCLAP::Arg
static void beginIgnoring ()
 Begin ignoring arguments since the "--" argument was specified. More...

static bool ignoreRest ()
 Whether to ignore the rest. More...

static char delimiter ()
 The delimiter that separates an argument flag/name from the value. More...

static char blankChar ()
 The char used as a place holder when SwitchArgs are combined. More...

static char flagStartChar ()

static const std::string flagStartString ()

static const std::string nameStartString ()

static const std::string ignoreNameString ()
 The name used to identify the ignore rest argument. More...

static void setDelimiter (char c)
 Sets the delimiter for all arguments. More...

- Protected Member Functions inherited from TCLAP::ValueArg< T >
void _extractValue (const std::string &val)
 Extracts the value from the string. More...

- Protected Member Functions inherited from TCLAP::Arg
void _checkWithVisitor () const
 Performs the special handling described by the Visitor. More...

 Arg (const std::string &flag, const std::string &name, const std::string &desc, bool req, bool valreq, Visitor *v=NULL)
 Primary constructor. More...

- Protected Attributes inherited from TCLAP::ValueArg< T >
_value
 The value parsed from the command line. More...

_default
 Used to support the reset() method so that ValueArg can be reset to their constructed value. More...

std::string _typeDesc
 A human readable description of the type to be parsed. More...

Constraint< T > * _constraint
 A Constraint this Arg must conform to. More...

- Protected Attributes inherited from TCLAP::Arg
std::string _flag
 The single char flag used to identify the argument. More...

std::string _name
 A single word namd identifying the argument. More...

std::string _description
 Description of the argument. More...

bool _required
 Indicating whether the argument is required. More...

std::string _requireLabel
 Label to be used in usage description. More...

bool _valueRequired
 Indicates whether a value is required for the argument. More...

bool _alreadySet
 Indicates whether the argument has been set. More...

Visitor_visitor
 A pointer to a visitor object. More...

bool _ignoreable
 Whether this argument can be ignored, if desired. More...

bool _xorSet
 Indicates that the arg was set as part of an XOR and not on the command line. More...

bool _acceptsMultipleValues


Detailed Description

template<class T>
class TCLAP::UnlabeledValueArg< T >

The basic unlabeled argument that parses a value.

This is a template class, which means the type T defines the type that a given object will attempt to parse when an UnlabeledValueArg is reached in the list of args that the CmdLine iterates over.

Definition at line 46 of file UnlabeledValueArg.h.

Constructor & Destructor Documentation

◆ UnlabeledValueArg() [1/4]

template<class T >
TCLAP::UnlabeledValueArg< T >::UnlabeledValueArg ( const std::string &  name,
const std::string &  desc,
bool  req,
value,
const std::string &  typeDesc,
bool  ignoreable = false,
Visitor v = NULL
)

UnlabeledValueArg constructor.

Constructor implementation.

Parameters
name- A one word name for the argument. Note that this is used for identification, not as a long flag.
desc- A description of what the argument is for or does.
req- Whether the argument is required on the command line.
value- The default value assigned to this argument if it is not present on the command line.
typeDesc- A short, human readable description of the type that this object expects. This is used in the generation of the USAGE statement. The goal is to be helpful to the end user of the program.
ignoreable- Allows you to specify that this argument can be ignored if the '–' flag is set. This defaults to false (cannot be ignored) and should generally stay that way unless you have some special need for certain arguments to be ignored.
v- Optional Visitor. You should leave this blank unless you have a very good reason.

Definition at line 216 of file UnlabeledValueArg.h.

References TCLAP::Arg::_ignoreable, TCLAP::OptionalUnlabeledTracker::check(), and TCLAP::Arg::toString().

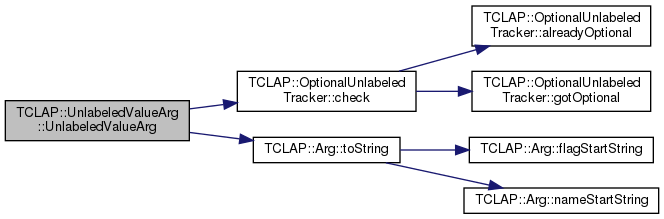

Here is the call graph for this function:

◆ UnlabeledValueArg() [2/4]

template<class T >
TCLAP::UnlabeledValueArg< T >::UnlabeledValueArg ( const std::string &  name,
const std::string &  desc,
bool  req,
value,
const std::string &  typeDesc,
CmdLineInterface parser,
bool  ignoreable = false,
Visitor v = NULL
)

UnlabeledValueArg constructor.

Parameters
name- A one word name for the argument. Note that this is used for identification, not as a long flag.
desc- A description of what the argument is for or does.
req- Whether the argument is required on the command line.
value- The default value assigned to this argument if it is not present on the command line.
typeDesc- A short, human readable description of the type that this object expects. This is used in the generation of the USAGE statement. The goal is to be helpful to the end user of the program.
parser- A CmdLine parser object to add this Arg to
ignoreable- Allows you to specify that this argument can be ignored if the '–' flag is set. This defaults to false (cannot be ignored) and should generally stay that way unless you have some special need for certain arguments to be ignored.
v- Optional Visitor. You should leave this blank unless you have a very good reason.

Definition at line 232 of file UnlabeledValueArg.h.

References TCLAP::Arg::_ignoreable, TCLAP::CmdLineInterface::add(), TCLAP::OptionalUnlabeledTracker::check(), and TCLAP::Arg::toString().

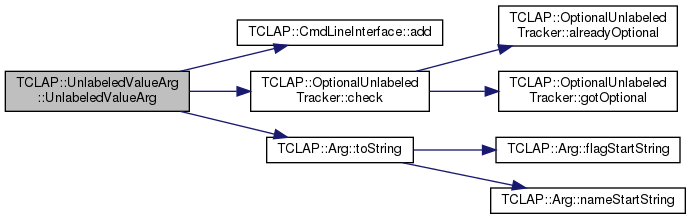

Here is the call graph for this function:

◆ UnlabeledValueArg() [3/4]

template<class T >
TCLAP::UnlabeledValueArg< T >::UnlabeledValueArg ( const std::string &  name,
const std::string &  desc,
bool  req,
value,
Constraint< T > *  constraint,
bool  ignoreable = false,
Visitor v = NULL
)

UnlabeledValueArg constructor.

Constructor implementation.

Parameters
name- A one word name for the argument. Note that this is used for identification, not as a long flag.
desc- A description of what the argument is for or does.
req- Whether the argument is required on the command line.
value- The default value assigned to this argument if it is not present on the command line.
constraint- A pointer to a Constraint object used to constrain this Arg.
ignoreable- Allows you to specify that this argument can be ignored if the '–' flag is set. This defaults to false (cannot be ignored) and should generally stay that way unless you have some special need for certain arguments to be ignored.
v- Optional Visitor. You should leave this blank unless you have a very good reason.

Definition at line 251 of file UnlabeledValueArg.h.

References TCLAP::Arg::_ignoreable, TCLAP::OptionalUnlabeledTracker::check(), and TCLAP::Arg::toString().

Here is the call graph for this function:

◆ UnlabeledValueArg() [4/4]

template<class T >
TCLAP::UnlabeledValueArg< T >::UnlabeledValueArg ( const std::string &  name,
const std::string &  desc,
bool  req,
value,
Constraint< T > *  constraint,
CmdLineInterface parser,
bool  ignoreable = false,
Visitor v = NULL
)

UnlabeledValueArg constructor.

Parameters
name- A one word name for the argument. Note that this is used for identification, not as a long flag.
desc- A description of what the argument is for or does.
req- Whether the argument is required on the command line.
value- The default value assigned to this argument if it is not present on the command line.
constraint- A pointer to a Constraint object used to constrain this Arg.
parser- A CmdLine parser object to add this Arg to
ignoreable- Allows you to specify that this argument can be ignored if the '–' flag is set. This defaults to false (cannot be ignored) and should generally stay that way unless you have some special need for certain arguments to be ignored.
v- Optional Visitor. You should leave this blank unless you have a very good reason.

Definition at line 265 of file UnlabeledValueArg.h.

References TCLAP::Arg::_ignoreable, TCLAP::CmdLineInterface::add(), TCLAP::OptionalUnlabeledTracker::check(), and TCLAP::Arg::toString().

Here is the call graph for this function:

Member Function Documentation

◆ addToList()

template<class T >
void TCLAP::UnlabeledValueArg< T >::addToList ( std::list< Arg *> &  argList) const
virtual

Instead of pushing to the front of list, push to the back.

Parameters
argList- The list to add this to.

Reimplemented from TCLAP::Arg.

Definition at line 337 of file UnlabeledValueArg.h.

◆ longID()

template<class T >
std::string TCLAP::UnlabeledValueArg< T >::longID ( const std::string &  val = "val") const
virtual

Overrides longID for specific behavior.

Overriding longID for specific output.

Reimplemented from TCLAP::ValueArg< T >.

Definition at line 314 of file UnlabeledValueArg.h.

References TCLAP::ValueArg< T >::_typeDesc.

◆ operator==()

template<class T >
bool TCLAP::UnlabeledValueArg< T >::operator== ( const Arg a) const
virtual

Overrides operator== for specific behavior.

Overriding operator== for specific behavior.

Reimplemented from TCLAP::Arg.

Definition at line 328 of file UnlabeledValueArg.h.

References TCLAP::Arg::_description, TCLAP::Arg::_name, TCLAP::Arg::getDescription(), and TCLAP::Arg::getName().

Here is the call graph for this function:

◆ processArg()

template<class T >
bool TCLAP::UnlabeledValueArg< T >::processArg ( int *  i,
std::vector< std::string > &  args
)
virtual

Handles the processing of the argument.

Implementation of processArg().

This re-implements the Arg version of this method to set the _value of the argument appropriately. Handling specific to unlabeled arguments.

Parameters
i- Pointer the the current argument in the list.
args- Mutable list of strings.

Reimplemented from TCLAP::ValueArg< T >.

Definition at line 284 of file UnlabeledValueArg.h.

References TCLAP::Arg::_alreadySet, TCLAP::ValueArg< T >::_extractValue(), and TCLAP::Arg::_hasBlanks().

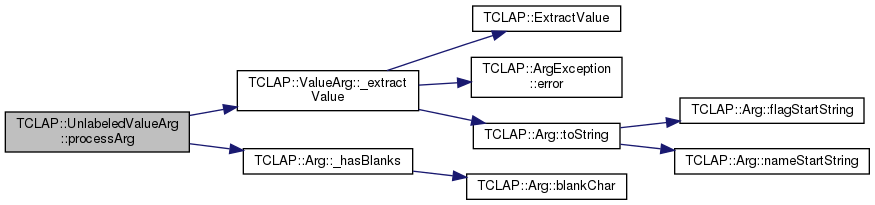

Here is the call graph for this function:

◆ shortID()

template<class T >
std::string TCLAP::UnlabeledValueArg< T >::shortID ( const std::string &  val = "val") const
virtual

Overrides shortID for specific behavior.

Overriding shortID for specific output.

Reimplemented from TCLAP::ValueArg< T >.

Definition at line 304 of file UnlabeledValueArg.h.

References TCLAP::ValueArg< T >::_typeDesc.


The documentation for this class was generated from the following file:
